Using WinMerge within Visual Studio

In VS 2011, there are major improvements coming to the in-built Diff tool. But in the mean time, there is a better way to performs merges and compares – it uses the OpenSource tool WinMerge:
Here is how:

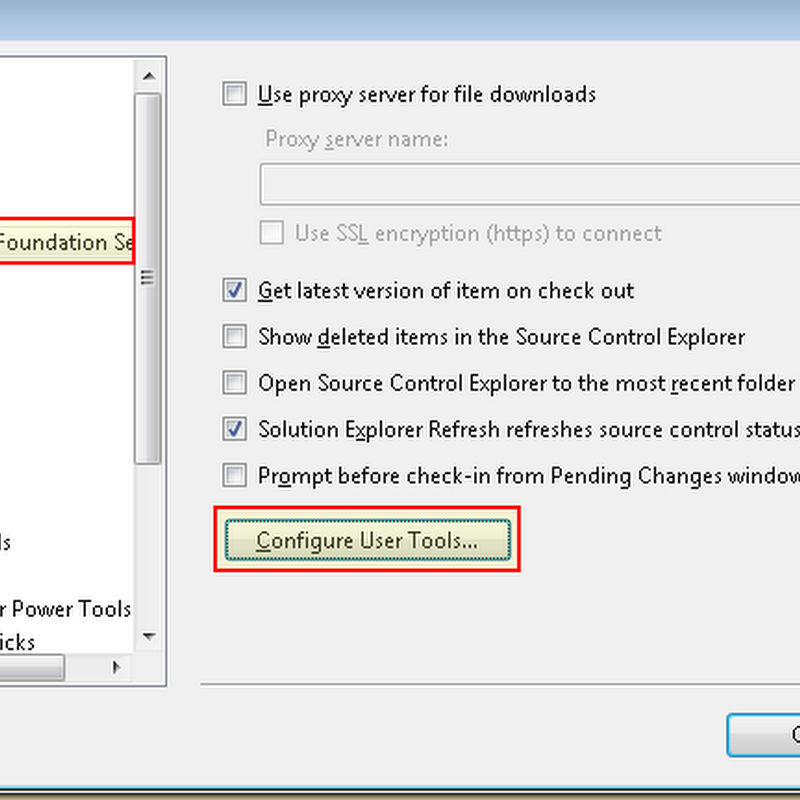

Open the options dialog: Tools –> Options and navigate to Source-Control –> Visual Studio Team Foundation Server.
Click on Configure User Tools….
Click on Add
image Extension: .*
Operation: Compare
Command: path to WinmergeU.exe
Arguments: /e /u /x /wl /wr /dl %6 /dr %7 %1 %2 /maximize
Click on Add again and this time setup the Merge tool.
image Extension: .*
Operation: Merge
Command: path to WinmergeU.exe
Arguments: /e /u /x /wl /dl %6 /dr %7 %1 %2 %4 /maximize
note: the Arguments are different between the Compare and Merge settings.
And now you should have a much more powerful way to compare and merge files:
